This is one of a series of articles I plan to write about the subjects I learned in my Software Engineering degree, as a summary and rivision of all the knowledge I gained.

Algorithms and data structures are perhaps the most basic yet most important subjects for all computer science students, that’s why I started with this. First of all here’s a website that I found quite useful to help learning algorithms and data structures by visualizing.

The outlines and summary of the algorithm and complexity subject:

- Data structure

• Array
• Linked list
• Stack (LIFO)
• Queue (FIFO)
• Priority queue
• Tree
• Graph

- Growth rate and Analysis

• Time and space complexty

  t(n) ≈ c·g(n) where c is the cost of a basic operation and g is the number of times the operation is performed in terms of input size n.

• Best, worst and average case

• f (n) ≺ g(n) iff lim[n ->infinity] f(n)/g(n) = 0

• 1 ≺ log n ≺ n^e ≺ n^c ≺ n^(log n) ≺ c^n ≺ n^n
  where 0 < e < 1 < c

• Big-O, Big-Omega and Big-Theta

• Complexity Analysis

- Brute Force

• Selection Sort
• String Matching
• Closest pair
• Exhaustive search for combinatorial problem
• Graph traversal

- Recursion

• Example: Factorial Numbers and Fibonacci Numbers
• Example: Tower of Hanoi
• General guideline for recursion: recursively divide the problem into smaller sub-problems until base cases are reached.
• More efficient solution for recursion: dynamic programming

- Graph

• Graph concepts: Undirected - directed, Connnected - Not connected, Unweighted- weighted, Dense - Sparse, Cyclic - Acyclic(a tree), Directed cyclic - Directed acyclic(a dag)
• The degree of node v is the number of edges incident on v.

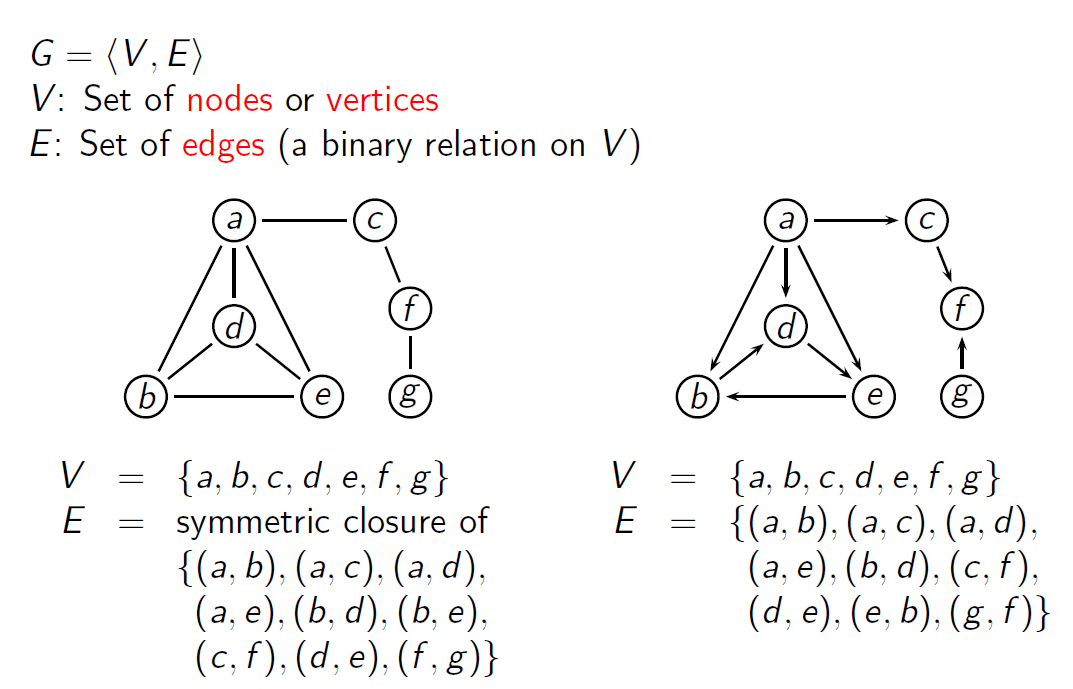

• Mathematical representation of graph:

• Graph representations : adjacency matrix and adjacency list

- Decrease and Conquer by constant

• The problem is reduced by some constant in each iteration of the algorithm
• To solve a problem of size n, try to express the solution in terms of a solution to the same problem of size n − 1.
• Insertion sort
• The trick of posting a sentinel for insertion sort
• Shellsort

- Decrease and Conquer by factor

• Decrease-by-a-constant-factor: Binary search
• Decrease-by-a-variable-factor: Interpolation search
• Lomuto Partitioning

- Divide and Conquer

• 1. Divide the given problem instance into smaller instances.
  2. Solve the smaller instances recursively.
  3. Combine the smaller solutions to solve the original instance.
• The Master Theorem
• Mergesort
• Quicksort and corresponding improvements:
  • Median-of-three
  • Early Cut-off

Binary Tree

• Binary tree traversal:
  • Preorder: root -> left subtree -> right subtree
  • Inorder: left subtree -> root -> right subtree
  • Postorder: left subtree -> right subtree -> root
  • Level-order: visits the nodes level by level, starting from the root
• Closest Pair problem using divide-and-conquer to reach theta(nlogn) complexity

- Heap and Heap sort

• A Heap is a complete binary tree which satisfies the heap condition:
  Each child has priority no greater than its parent’s.(a max-heap) *
• Heapsort: Given unsorted array H[1..n]:
  1. Turn H into a heap
  2. Apply the eject operation n-1 times

- Transform and conquer

• Try to make the problem easier through pre-processing, typical sorting:
  • Uniqueness checking with presorting
  • Mode finding with presorting
  • Searching with presorting
• Binary Search Tree:
  Each element in the left subtree is smaller than the root, and each element in the right sub-tree is larger than the root
  • BST which is “reasonably” balanced involves Theta(logn) comparisons in the worst case.
  • BST which is not balanced involves linear search in the worst case.
  • To insert a new element into a BST, search for k and insert the element at the empty sub-tree.

- Balanced tree

• AVL tree:
  • balance factor: the difference between the height of left subtree and right subtree.
  • An AVL tree is a BST in which the balance factor is -1, 0 or 1 for every sub-tree.
  • Insertion: transform the tree to regain balance after insertion by rotations.
  • R-Rotation, L-Rotation, RL-Rotation, LR-Rotation.
  • Always rebalance the lowest unbalanced subtree.
  • Some more balanced tree:
  • Red-black tree
  • splay tree
• 2-3 Trees and 2-3-4 Trees
  • A node that holds a single item has aat most two children.
  • A node that holds two items has at most three children, and etc.

To be contitued…

- Time space tradeoff

- Hashing

- Dynamic Programming

- Warshall and Floyd

- Greedy Algorithms

- NP Completeness
